Integrated LED Floodlight
Wide-angle lighting fixtures suitable for illuminating building facades, signage, courtyards, sports fields, and general outdoor areas.
This series of integrated LED floodlights is designed for practical outdoor lighting, capable of illuminating large areas with a single adjustable fixture. Key features include an aluminum housing, integrated heat-dissipation fins, an adjustable bracket, and a wide 120-degree beam angle. Power options range from 10W to 200W; the 50W model delivers a luminous flux of 1800 lm and a CRI of 80. These fixtures are suitable for various applications, including walls, billboards, courtyards, entrances, and outdoor work areas.
- Integrated LED Floodlight Housing

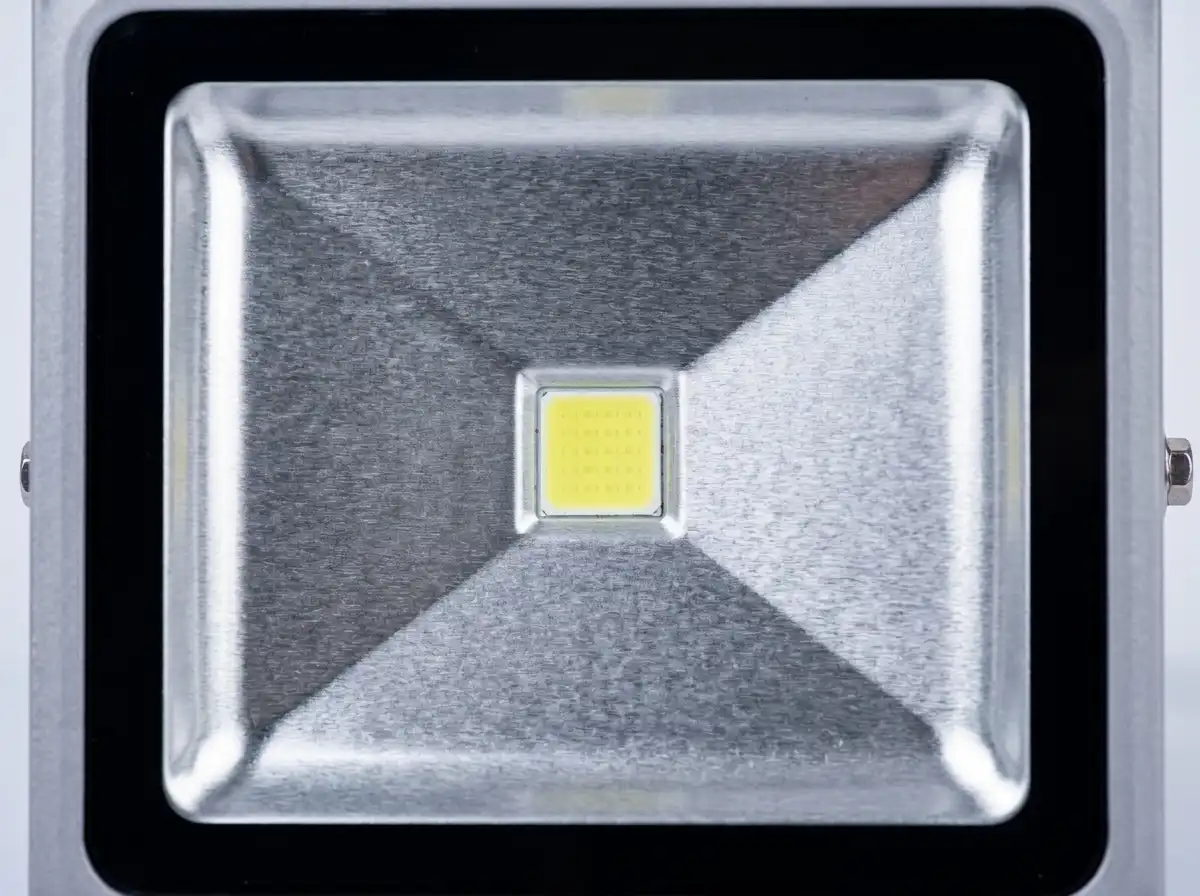

- Aluminum housing with heat-dissipation fins
- Ingress Protection: IP65
- Input Voltage: 220V; Beam Angle: 120 degrees
- Power Range: 10W to 200W
- 50W Model Specifications: 1800 lm
- Available in cool white and warm white options
Suitable Scenarios
Flexible coverage to meet diverse outdoor lighting needs
This luminaire is designed for projects requiring the illumination of areas beyond the fixture itself—such as walls, signage, building facades, courtyards, entrances, gateways, or work zones. Its wide-beam characteristics make it ideal for broad-area illumination rather than the narrow-beam accent lighting used for trees or sculptures. Users can select from various wattage specifications based on installation distance and the size of the area to be lit, allowing the same product series to serve applications ranging from small commercial signage to large outdoor spaces.

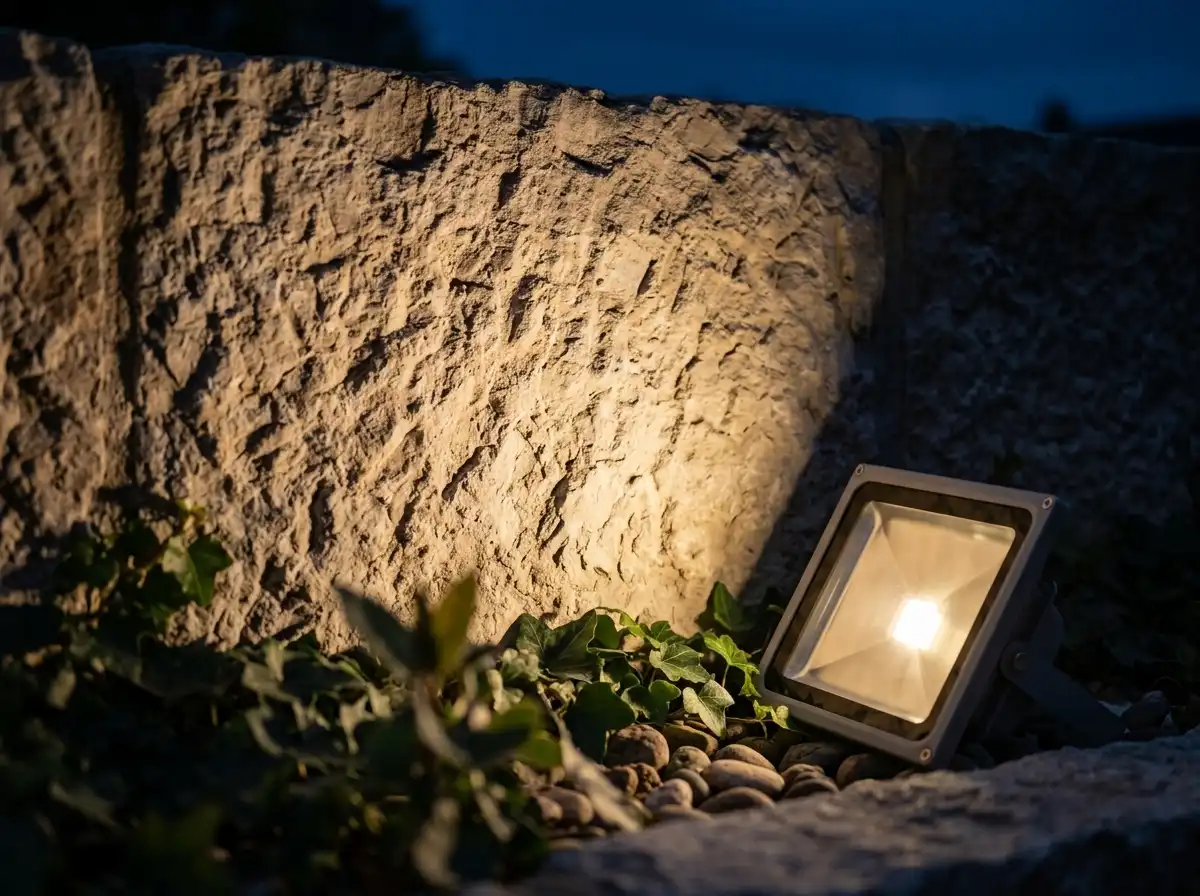

- Building facades and exterior walls

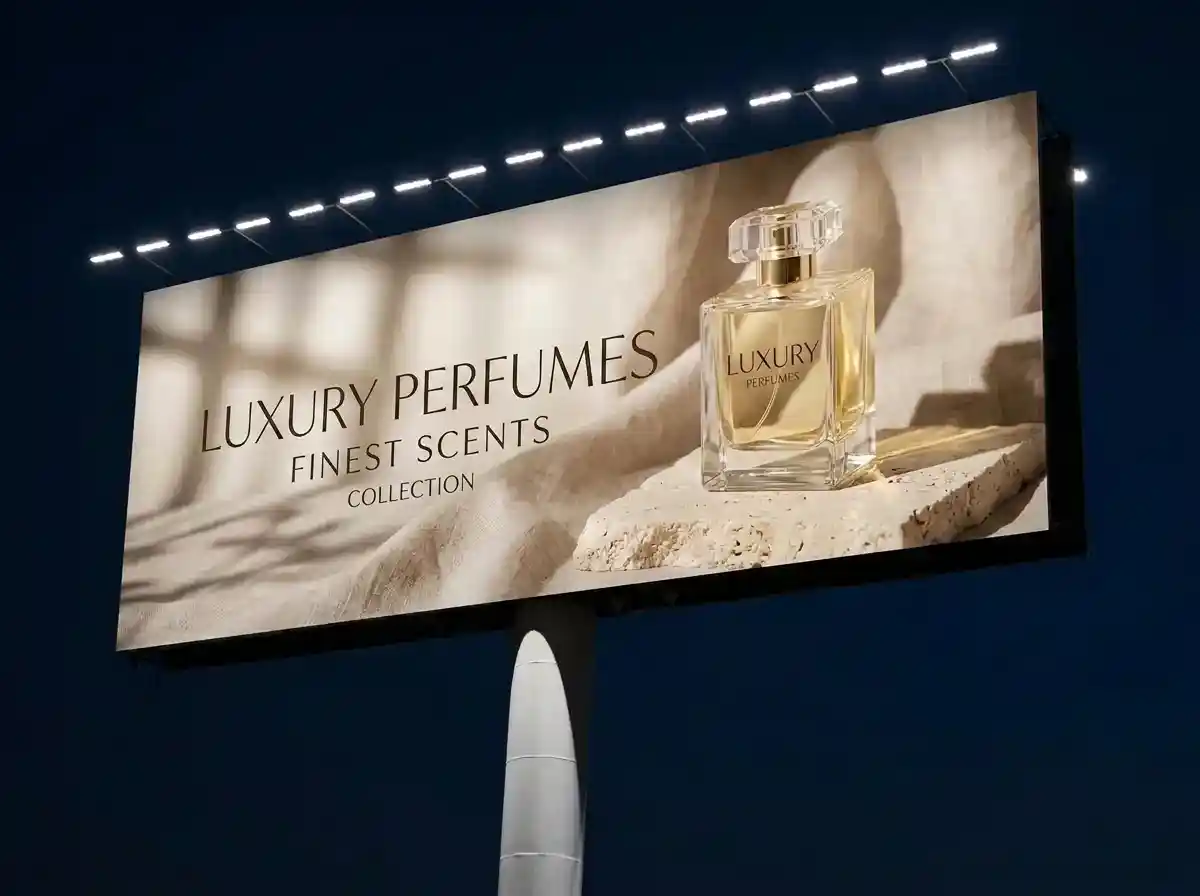

- Storefront signage and billboards

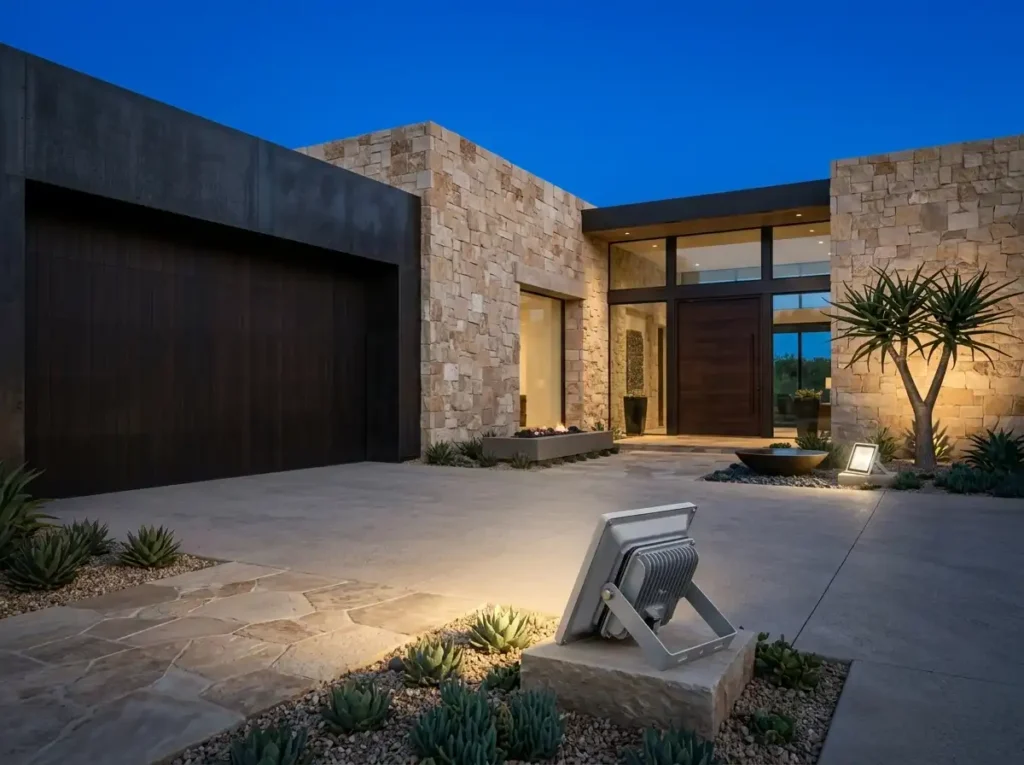

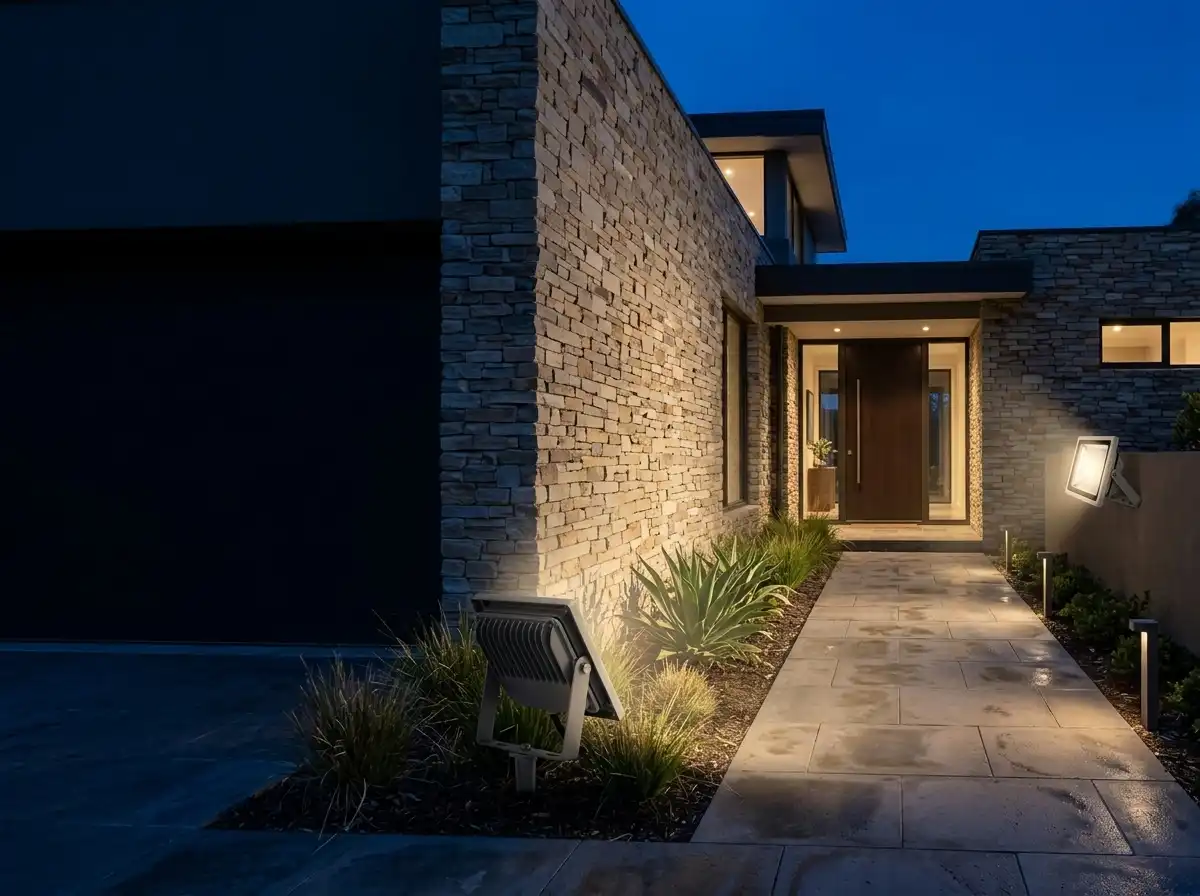

- Courtyards, entrances, driveways, and loading zones
- Sports facilities and community public spaces
- Construction and maintenance work areas
- Warehouse yards and outdoor displays
Mainstream Custom Specifications
- Product Type: Integrated LED outdoor floodlight
- Material: Aluminum / Die-cast aluminum housing
- Ingress Protection: IP65
- Voltage: 220V
- Beam Angle: 120°
- Power Options: 10W / 20W / 30W / 50W / 100W / 150W / 200W
- 50W Specifications (Reference): 1800 lm, CRI 80, 285 x 230mm
- Light Color: White or Warm White
- Mounting: Adjustable U-bracket with cable outlet
Core Function
Its primary function is to provide flexible, wide-area illumination via an adjustable mounting bracket. Installers can direct the light onto walls, signage, driveways, or activity areas, eliminating the need for multiple smaller fixtures. The appropriate wattage should be selected based on mounting height, projection distance, target size, and required brightness. While distance charts provided by the supplier serve as a planning reference, actual lighting performance is influenced by factors such as the installation angle, ambient light, and the reflectivity of the target surface.
Advantage Comparison
Compared to low-cost floodlights with flimsy housings, this series features a superior structural design, including an aluminum body, an integrated heat dissipation system, an adjustable bracket, and visible cable protection. It offers a clear range of wattage options for projects that require variable brightness levels and flexible lighting angles. Its advantages lie not only in higher power output but also in the optimal alignment of fixture dimensions and performance with actual lighting requirements. To finalize your customized solution, please verify specifications such as driver type, lumen output, cable length, color temperature (CCT), surge protection, and certifications based on the selected wattage.
