Linear LED Inground Light
Project-grade recessed ground lighting for plazas, parks, pathways, architectural edges, garden walls, and outdoor linear guidance.
Recessed LED in-ground lights for outdoor architectural and landscape lighting. Standard configurations include stainless steel panels, tempered glass, and various protection options from IP65 to IP67. Customization is available in various power ratings and lengths. Comes with matching pre-embedded sleeves, concrete/mortar connections, wiring, and driver connections, suitable for projects requiring continuous ground lighting rather than single-point markings.
- Linear recessed in-ground lights

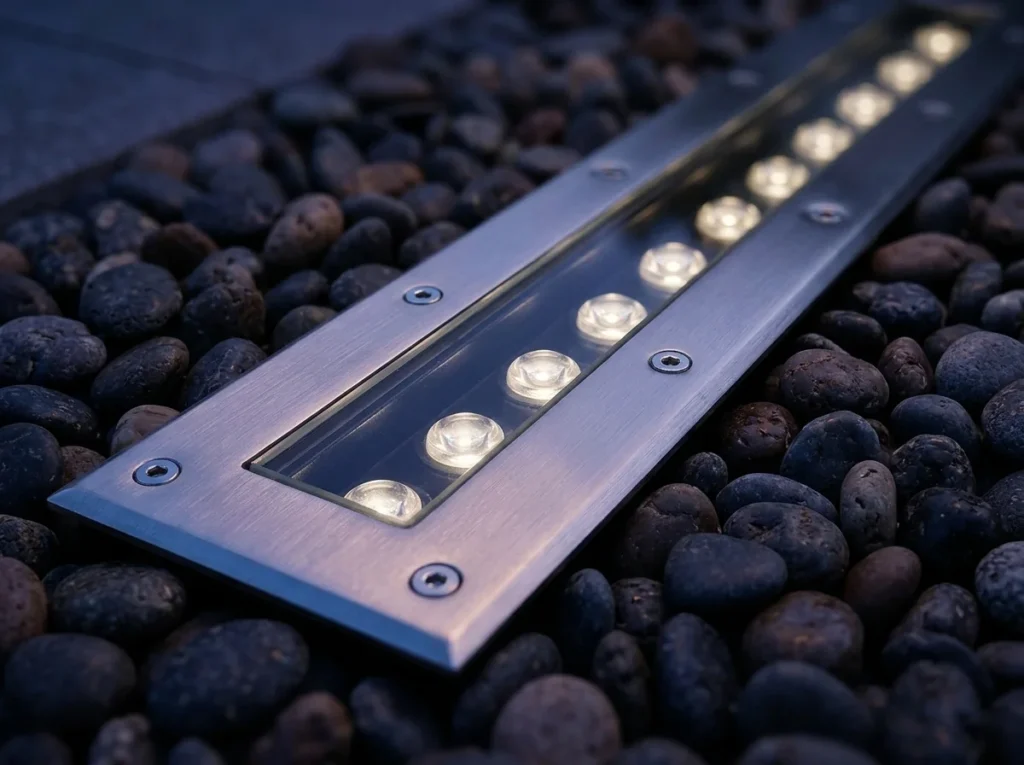

- Stainless steel panel and tempered glass
- IP66 protection rating (mainstream)
- Available in various power and length options, from 170 mm to 1000 mm

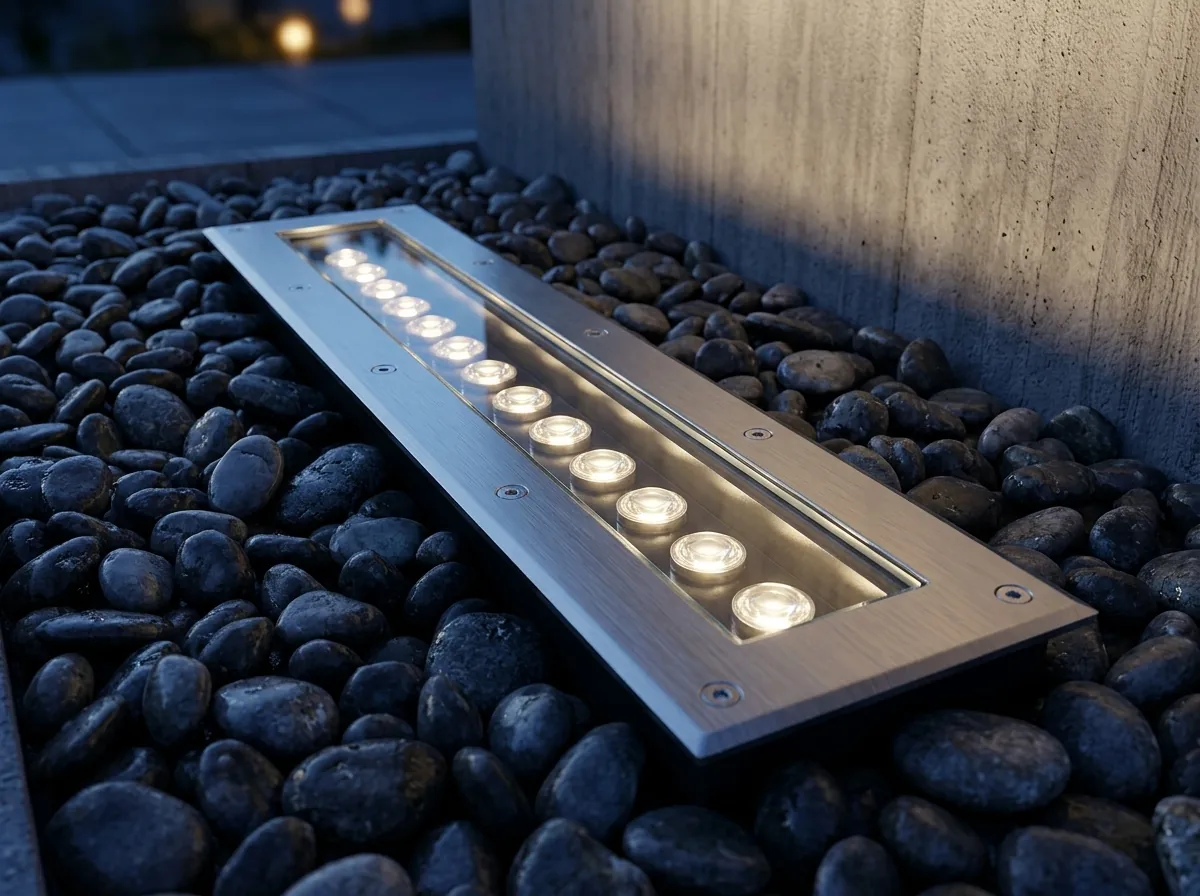

- Recessed installation including sleeve and wiring
Suitable Scenarios
Designed To Create Continuous Ground Lines And Architectural Guidance

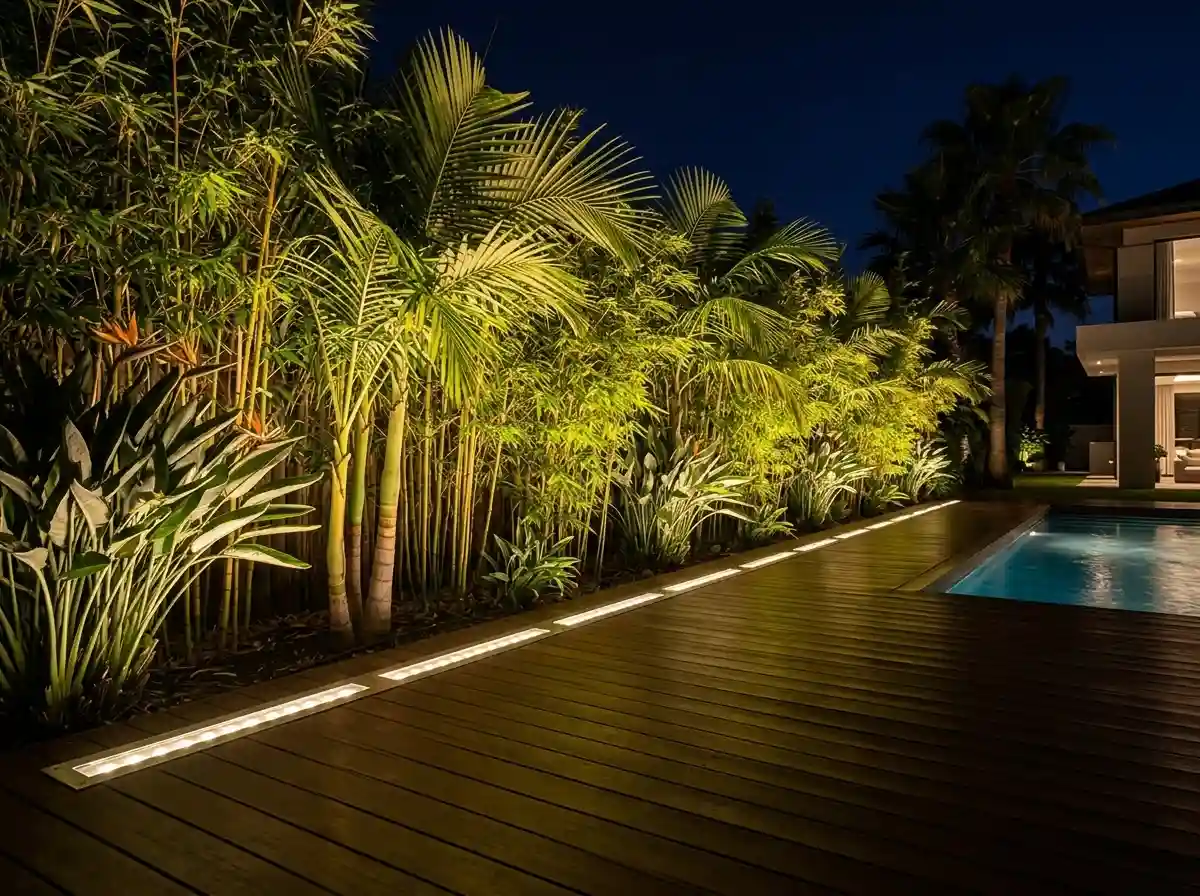

This light is suitable for outdoor areas where the ground lines need to guide pedestrian flow or emphasize the building’s silhouette. It can be installed on plaza paving, steps, wall bases, building entrances, park routes, and garden paths. For outdoor environments requiring repeated installation, the long rectangular in-ground light layout creates a more continuous and engineered look than circular dot-shaped in-ground lights.
- Plaza and commercial paving
- Park paths and landscape routes
- Step edges and stair-side ground lines
- Building entrances and facade edges

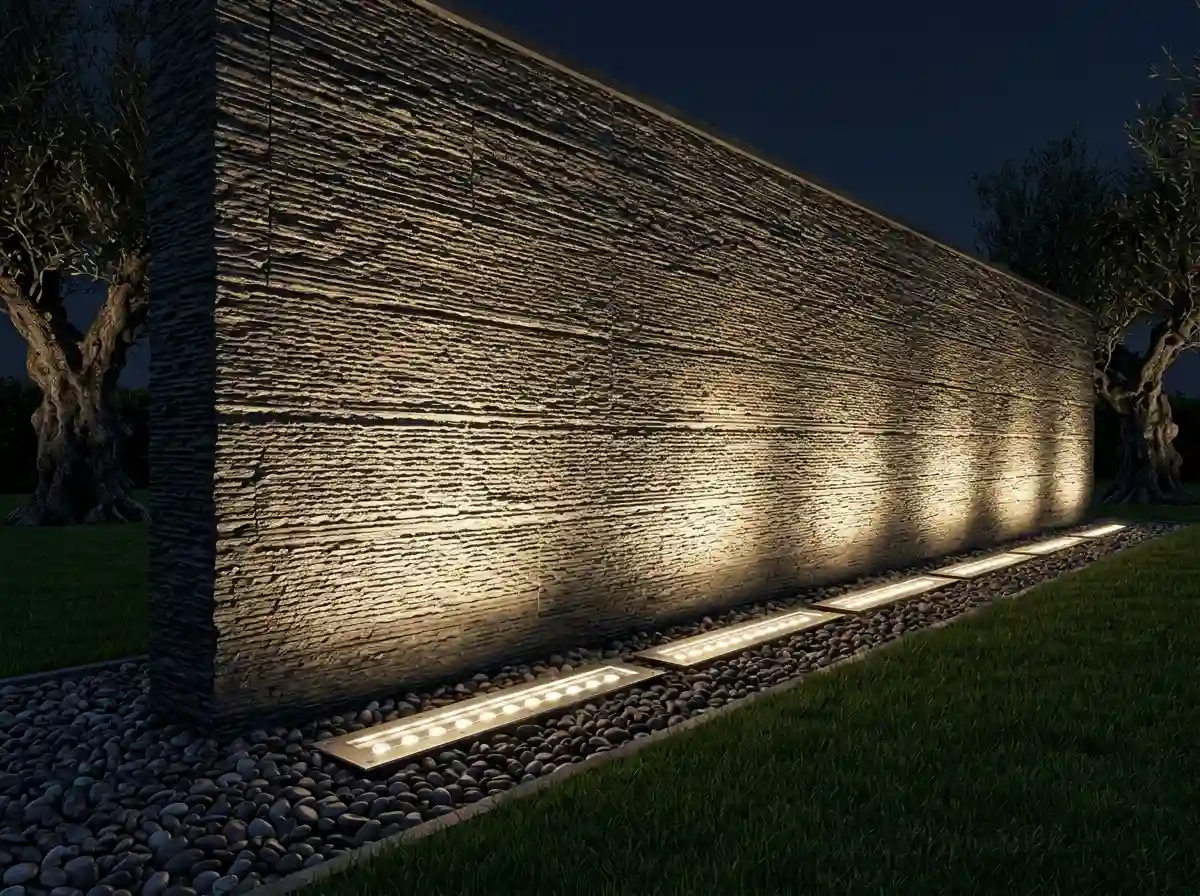

- Garden walls and wall-base lighting
Mainstream Custom Specifications
- Product Type: Linear LED In-ground Light
- Light Source: LED
- Material: Stainless Steel Panel + Tempered Glass

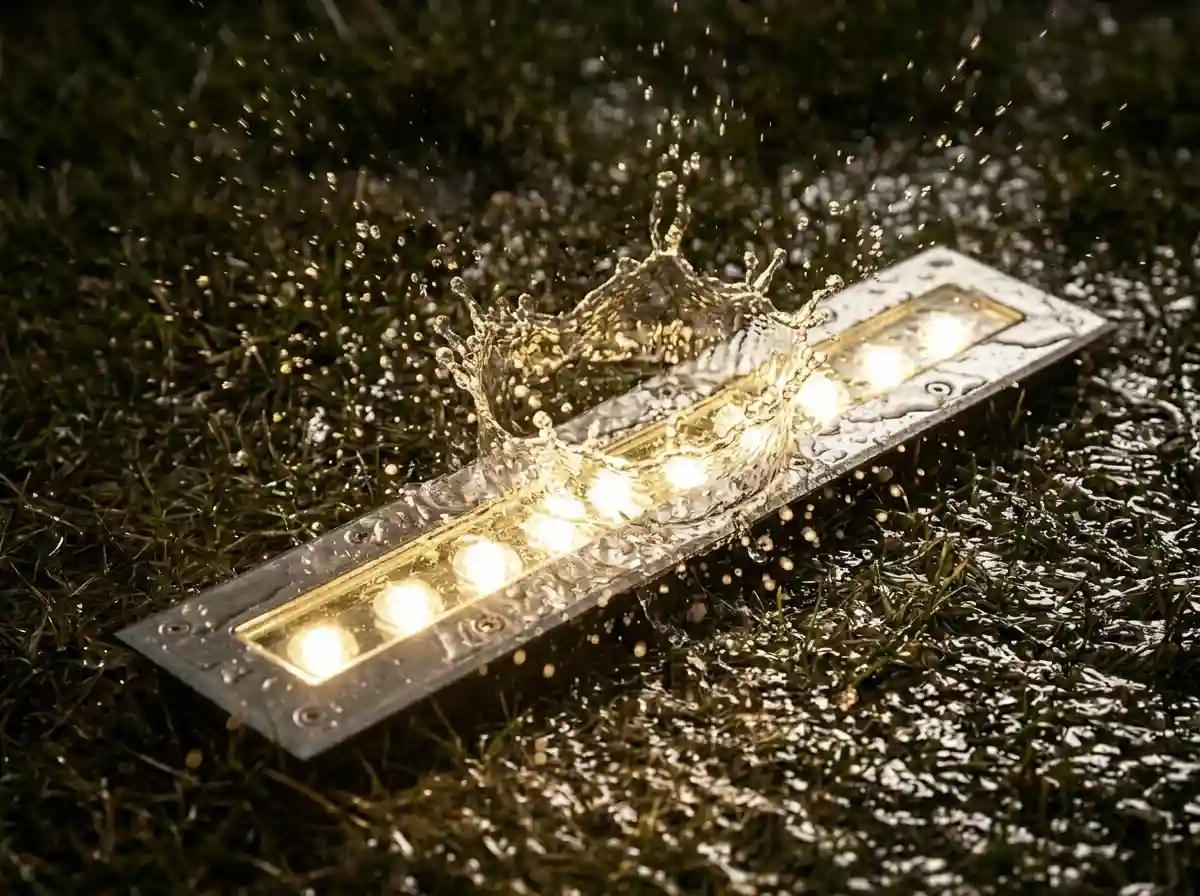

- Protection Rating: IP65-IP67, etc. (customizable)
- Voltage: 24V, 111V-240V, 85-265V, 12V, and other mainstream outputs
- Dimensions: 170x70xH55mm, 200x80xH60mm, 300x90xH75mm, 500x90xH75mm, 1000x90xH75mm, etc.
- Power: Mainstream 3-36W
Core Function
Its core function is to create a continuous linear guide on the ground. Unlike small, round in-ground lights, it forms visible lines, organizes paths, and thus reinforces structural boundaries. For projects with a strong engineering focus, this regular lighting layout is suitable for striking a balance between decorative and formal elements. In addition to the nighttime effect, it also includes considerations such as groove dimensions, pre-embedded structures, drainage, drive voltage, and wiring methods to protect the light fixture from water ingress or corrosion, extending its lifespan.
Advantage Comparison
Compared to spot-type in-ground lights, it creates cleaner architectural lines and a stronger project rhythm. Alternative products often lack information on grooving, driving, and waterproofing, resulting in higher construction risks. This product should be marketed through a matrix of length, power, LED quantity, grooving, voltage, and protection rating, thus making this single-item light a complete solution.
